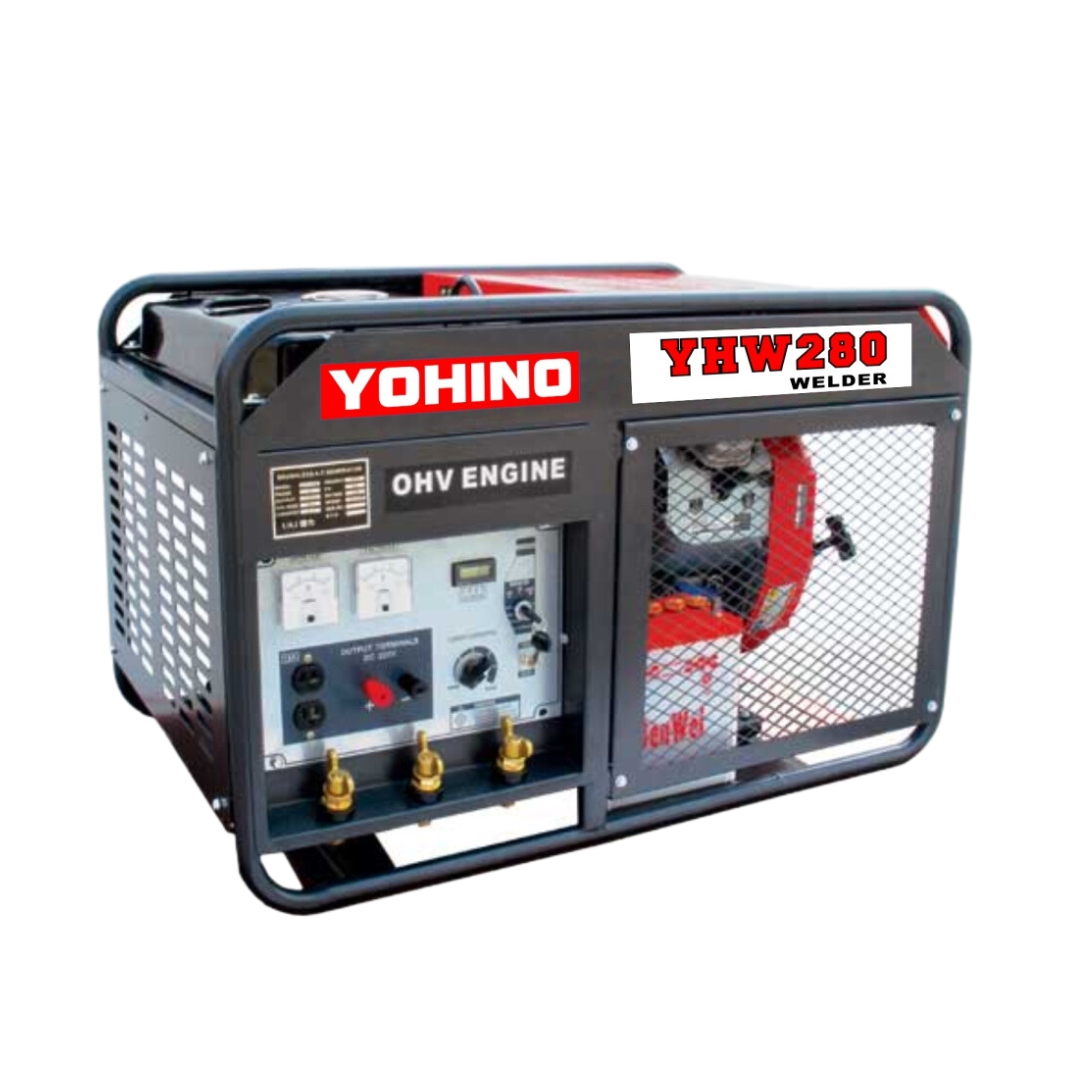

YOHINO GASOLINE GENERATOR & WELDER YHW280
| DC WELDER | |
| Max. Current (A) | 280 |
| Rated Current | 250 |
| Welding Voltage Without Load(V) | 52 |
| Work Voltage (V) | 34 |
| Current Adjusting Range(A) | 50-280 |
| Welding Load Continuous Ratio(%) | 50 |
| Welding Stick(mm) | 2.5-6.0 |
| AC GENERATOR | |
| Rated Output(Kva) | 5 |
| Rated Current(A) | 22.7 |
| Phase | Single |
| Frequency(Hz) | 60 |
| Rated Voltage(V) | 220 |
| Power Factor (cos) | 1 |
| ENGINE | |
| Model | GX620 |
| Type | Vertical |
| Rated Power/Speed(Hp/rpm) | 20/3600 |
| Starting Fashion | Recoil/Electric Start |
| Fuel Type | Gasoline |
| GENERATOR SET | |
| Fuel Tank Capacity(L) | 30 |
| Continuous Running Time(H) | 3.6 |
| Oil Capacity(L) | 1.5 |
| Overall Dimension LxWxH(mm) | 953×617×662 |
| Net Weight/Gross Weight | 185/195 |
